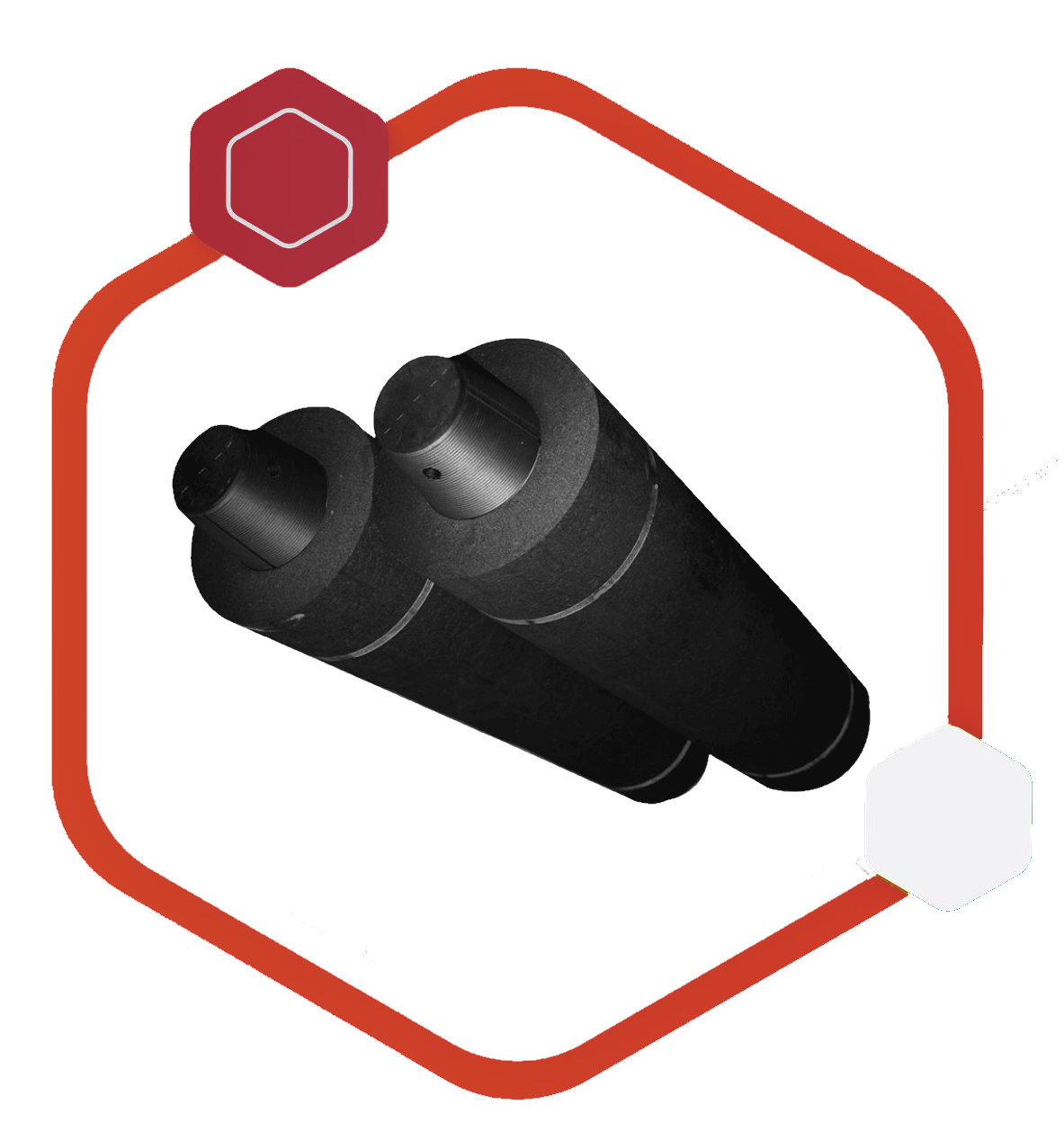

Industrial Graphite Electrodes
Product Details:
Industrial graphite electrodes are crucial components in electric arc furnaces used for steelmaking and other metallurgical processes. They conduct electrical energy into the furnace, which generates the heat needed to melt scrap steel or iron. The quality, performance, and specifications of these electrodes play a vital role in the efficiency and cost-effectiveness of the steelmaking process. Here’s a detailed table that outlines the typical characteristics and specifications of industrial graphite electrodes:
| Property/Specification | Description | Typical Values |
|---|---|---|
| Diameter | Size of the electrode, impacting current carrying capacity. | Ranges from 75mm to 700mm. |
| Length | The length of the electrode. | Commonly 1800mm to 2400mm. |
| Grade | Categorized based on power: RP (Regular Power), HP (High Power), UHP (Ultra High Power). | Varies based on furnace requirements. |
| Electrical Conductivity | Ability to conduct electricity. | High, essential for efficiency in melting processes. |
| Thermal Conductivity | Ability to withstand and transfer heat. | High, to endure extreme temperatures. |
| Bending Strength | Resistance to breakage under stress. | Typically 10-20 MPa. |
| Bulk Density | Mass per unit volume, indicating compactness of the material. | Approximately 1.5 – 1.8 g/cm³. |
| Ash Content | Residual material post combustion, indicating purity. | Generally less than 0.5%. |
| Coefficient of Thermal Expansion | Expansion rate when heated. | Low, to maintain structural integrity at high temperatures. |
| Nipple Size | The size of the connector used to join electrodes. | Customized as per electrode size and furnace design. |
Applications:
- Steelmaking: In electric arc furnaces for melting scrap steel or iron.
- Ferrous and Non-Ferrous Metal Production: In furnaces for smelting various metals.
- Chemical Industries: For certain chemical heat treatments.
Handling and Safety:
- Storage: Should be stored in a dry area to prevent moisture absorption which can affect performance.
- Handling: Careful handling is required to prevent breakage or damage.
Graphite electrodes are selected based on the specific requirements of the furnace and the melting process. UHP grade electrodes are typically used in high-capacity furnaces where higher electrical currents are required. Regular maintenance and proper alignment of electrodes are crucial to ensure maximum efficiency and longevity of the electrodes. Manufacturers of graphite electrodes often provide detailed guidelines and support to ensure optimal usage in industrial applications.
